Brake Disc:43512-26130--TAIZHOU CHUNFENG AUTO PARTS CO.,LTD

Description
Ref.:	43512-26130
CF NO.:	CFD-1162

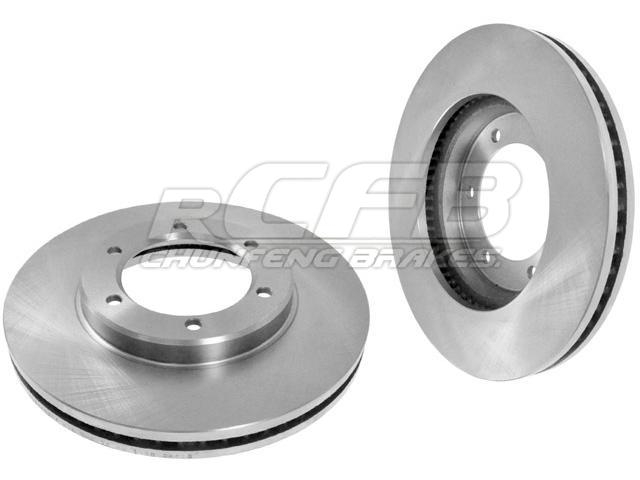

Name:	Brake Disc
Unit:	PCS
Price:
Front Axle Height : 49 mm Diameter : 285 mm Centering Diameter : 100 mm Brake Disc Thickness : 28.0 mm Minimum Thickness : 25.2 mm Num. of holes : 6 Solid or Vented : V

Model	Engine			Type	CYL	year
TOYOTA HIACE III Wagon (LH1_, RZH1_)					8/01 - 8/04
HIACE III Wagon (_H1_) 2.5 D-4D 4WD	2KD-FTV	2494	102	Bus	4	8/01 - 8/04
TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_)					1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	102	Box	4	1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD (KLH12_, KLH22_)	2KD-FTV	2494	102	Box	4	1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD (KLH28_)	2KD-FTV	2494	117	Box	4	9/06 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD (KLH18, KLH28_)	2KD-FTV	2494	88	Box	4	8/01 - 7/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 4WD (RCH18_, RCH28_)	2RZ-E	2438	116	Box	4	8/95 - 4/98
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Box	4	4/98 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.7 4WD (RCH19_, RCH29_)	3RZ-FE	2694	144	Box	4	4/98 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_)	2L-T	2446	90	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	88	Box	4	1/01 - 8/06
TOYOTA HIACE IV Bus (LH1_)					1/01 - 8/06
HIACE IV Bus (LH1_) 2.4 4WD (RCH18_)	2RZ-E	2438	116	Bus	4	8/95 - 4/98
HIACE IV Bus (LH1_) 2.7 4WD (RCH19_)	2L-T	2694	143	Bus	4	4/98 - 8/06
HIACE IV Bus (_H1_, _H2_) 2.5 D-4D 4WD (KLH12_, KLH22_)	2KD-FTV	2494	102	Bus	4	8/01 - 7/06
HIACE IV Bus (_H1_, _H2_) 2.7 4WD (RCH13_, RCH19_, RCH23_)	3RZ-FE	2694	144	Bus	4	7/99 - /
HIACE IV Bus (LH1_) 2.4 TD 4WD (H18/28)	2L-T	2446	90	Bus	4	8/95 - 8/06
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	88	Bus	4	1/01 - 8/06
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	102	Bus	4	1/01 - 8/06
