Brake Disc:30769059--TAIZHOU CHUNFENG AUTO PARTS CO.,LTD

Description
Ref.:	30769059
CF NO.:	CFD-2157

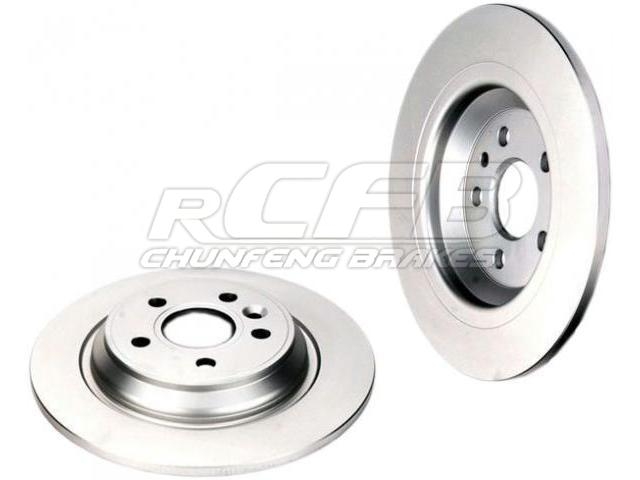

Name:	Brake Disc
Unit:	PCS
Price:
Rear Axle Height : 40.6 mm Diameter : 301.8 mm Centering Diameter : 63.8 mm Pitch Circle Diameter : 108 mm Brake Disc Thickness : 10.9 mm Minimum Thickness : 8.9 mm Num. of holes : 5 Solid or Vented : S Weight : 4.9 kg

Model	Engine			Type	CYL	year
VOLVO (CHANGAN) S80L					3/09 - /
S80L 2.0 T		1999	203	Saloon	4	2/10 - /
S80L 2.5	B 5254 T6	2521	200	Saloon	5	3/09 - /
S80L 3.0 AWD	B 6304 T2	2953	286	Saloon	6	3/09 - /
VOLVO S60 II					5/12 - /
S60 II 2.0 T		1984	180	Saloon	5	2/13 - /
S60 II 3.0 T AWD	B 6304 T5	2953	351	Saloon	6	5/14 - /
S60 II (134) T6 AWD	B 6304 T4	2953	329	Saloon	6	4/14 - 2/15
S60 II D4	D 4204 T5	1969	181	Saloon	4	9/13 - /
S60 II T5	B 4204 T11	1969	245	Saloon	4	9/13 - /
S60 II T6	B 4204 T9	1969	306	Saloon	4	9/13 - /
S60 II D5	D 5244 T23	2400	230	Saloon	5	4/14 - /
S60 II D5 AWD	D 5244 T23	2400	230	Saloon	5	4/14 - /
S60 II (134) T5 AWD	B 4204 T11	1969	245	Saloon	4	7/14 - /
S60 II 1.5 T3	B 4154 T4	1498	152	Saloon	4	3/15 - /
S60 II 2.0 D2	D 4204 T20	1969	120	Saloon	4	3/15 - /
S60 II 2.0 D3	D 4204 T9	1969	150	Saloon	4	3/15 - /
S60 II 2.0 D4	D 4204 T14	1969	190	Saloon	4	3/15 - /
S60 II 2.0 D5	D 4204 T11	1969	224	Saloon	4	3/15 - /
S60 II 2.0 T3	B 4204 T37	1969	152	Saloon	4	3/15 - /
S60 II 2.0 T4	B 4204 T19	1969	190	Saloon	4	5/15 - /
S60 II 2.4 D4 AWD	D 5244 T21	2400	190	Saloon	5	3/15 - /
S60 II (134) T5 AWD	B 5254 T12	2497	254	Saloon	5	8/15 - /
S60 II (134) 1.5 T2	B 4154 T5	1498	122	Saloon	4	0/15 - /
S60 II (134) T6 AWD	B 4204 T9	1969	306	Saloon	4	9/15 - /
S60 II D5	D 5244 T11	2400	215	Saloon	5	6/11 - /
S60 II D5 AWD	D 5244 T11	2400	215	Saloon	5	6/11 - /
S60 II DRIVe / D2	D 4162 T	1560	114	Saloon	4	1/11 - /
S60 II T3	B 4164 T3	1596	150	Saloon	4	4/10 - /
S60 II T4	B 4164 T	1596	180	Saloon	4	4/10 - /
S60 II 2.0 T	B 4204 T6	1999	203	Saloon	4	4/10 - /
S60 II T5	B 4204 T7	1999	240	Saloon	4	4/10 - /
S60 II T6 AWD	B 6304 T4	2953	304	Saloon	6	4/10 - /
S60 II D3	D 5204 T2	1984	163	Saloon	5	4/10 - 4/12
S60 II D5	D 5244 T10	2400	205	Saloon	5	4/10 - /
S60 II D5 AWD	D 5244 T10	2400	205	Saloon	5	4/10 - /
S60 II T4F	B 4164 T2	1596	180	Saloon	4	4/11 - /
S60 II D3	D 5204 T7	1984	136	Saloon	5	5/12 - /
S60 II D4	D 5204 T3	1984	163	Saloon	5	5/12 - /
VOLVO S80 II (AS)					5/11 - /
S80 II (AS) D5	D 5244 T4	2400	185	Saloon	5	3/06 - /
S80 II (AS) 2.5 T	B 5254 T6	2521	200	Saloon	5	3/06 - /
S80 II (AS) T6 AWD	B 6304 T2	2953	286	Saloon	6	1/07 - /
S80 II (AS) D4	D 4204 T5	1969	181	Saloon	4	9/13 - /
S80 II (AS) T5	B 4204 T11	1969	245	Saloon	4	9/13 - /
S80 II (AS) 2.0 Drive- E	B 4204 T11	1969	245	Saloon	4	2/14 - /
S80 II (AS) 2.5 T	B 5254 T12	2497	254	Saloon	5	1/12 - /
S80 II (AS) 2.5 T	B 5254 T14	2497	249	Saloon	5	9/12 - /
S80 II (124) S80 II 2.4 D		2400	163	Saloon		1/08 - /
S80 II (AS) T4	B 4164 T	1596	180	Saloon	4	0/10 - /
S80 II (AS) T5	B 4204 T7	1999	241	Saloon	4	0/10 - /
S80 II (AS) T6 AWD	B 6304 T4	2953	305	Saloon	6	0/10 - /
S80 II (AS) 2.4 D	D 5244 T	2400	163	Saloon	5	3/06 - /
S80 II (AS) 1.6 DRIVe	D 4162 T	1560	114	Saloon	4	6/11 - /
S80 II (AS) 3.2	B 6324 S	3192	238	Saloon	6	3/06 - /
S80 II (AS) D5 AWD	D 5244 T11	2400	215	Saloon	5	6/11 - /
S80 II (AS) D5	D 5244 T11	2400	215	Saloon	5	6/11 - /
S80 II (AS) D3 / D4	D 5204 T2	1984	163	Saloon	5	1/10 - /
S80 II (AS) 4.4 V8 AWD	B 8444 S	4414	316	Saloon	8	3/06 - /
S80 II (AS) 3.2 AWD	B 6324 S5	3192	243	Saloon	6	1/10 - /
S80 II (AS) 3.2	B 6324 S5	3192	243	Saloon	6	1/10 - /
S80 II (AS) D3	D 5204 T7	1984	136	Saloon	5	5/12 - /
S80 II (AS) 2.0 TDi	D 4204 T	1997	136	Saloon	4	2/08 - /
S80 II (AS) 1.6 D DRIVe	D 4164 T	1560	109	Saloon	4	1/10 - /
S80 II (AS) D5 AWD	D 5244 T4	2400	185	Saloon	5	1/07 - /
S80 II (AS) 2.5 T FlexFuel	B 5254 T11	2521	231	Saloon	5	1/10 - /
S80 II (AS) 2.4 D	D 5244 T14	2400	175	Saloon	5	1/10 - /
S80 II (AS) D5	D 5244 T10	2400	205	Saloon	5	1/10 - /
S80 II (AS) 2.5 T FlexFuel	B 5254 T8	2521	200	Saloon	5	5/08 - /
S80 II (AS) D5 AWD	D 5244 T10	2400	205	Saloon	5	1/10 - /
S80 II (AS) 2.5 T	B 5254 T10	2521	231	Saloon	5	1/10 - /
S80 II (AS) 2.0 T	B 4204 T6	1999	203	Saloon	4	1/10 - /
S80 II (AS) 2.0	B 4204 S3	1999	146	Saloon	4	1/08 - /
S80 II (AS) 2.0 FlexFuel	B 4204 S4	1999	146	Saloon	4	1/08 - /
S80 II (AS) 3.2 AWD	B 6324 S	3192	238	Saloon	6	1/07 - /
S80 II (AS) T4F	B 4164 T2	1596	180	Saloon	4	5/11 - /
VOLVO V60					2/12 - /
V60 (155, 157) 3.0 T AWD	B 6304 T5	2953	351	Estate	6	4/14 - /
V60 D4	D 4204 T5	1969	181	Estate	4	0/13 - /
V60 D4 AWD	D 5244 T12	2400	181	Estate	5	0/13 - /
V60 T5	B 4204 T11	1969	245	Estate	4	0/13 - /
V60 T5		1984	214	Estate	5	4/14 - /
V60 T6	B 4204 T9	1969	306	Estate	4	0/13 - /
V60 D5	D 5244 T23	2400	230	Estate	5	4/14 - /
V60 D5 AWD	D 5244 T23	2400	230	Estate	5	4/14 - /
V60 2.0 D2	D 4204 T20	1969	120	Estate	4	3/15 - /
V60 (155, 157) 2.0 D3	D 4204 T4	1969	150	Estate	4	3/15 - /
V60 2.0 D4	D 4204 T14	1969	190	Estate	4	3/15 - /
V60 2.0 T4	B 4204 T19	1969	190	Estate	4	5/15 - /
V60 (155, 157) 2.4 D5 Hybrid AWD	D87PHEV	2400	163	Estate	5	3/15 - /
V60 D4 AWD	D 5244 T21	2400	190	Estate	5	3/15 - /
V60 D5	D 4204 T11	1969	224	Estate	4	3/15 - /
V60 D6 Hybrid AWD	D97PHEV	2400	220	Estate	5	3/15 - /
V60 T3	B 4204 T37	1969	152	Estate	4	3/15 - /
V60 T3	B 4154 T4	1498	152	Estate	4	3/15 - /
V60 (155, 157) T6 AWD	B 5254 T12	2497	254	Estate	5	1/15 - /
V60 (155, 157) T6 AWD	B 4204 T9	1969	306	Estate	4	0/13 - /
V60 (155, 157) 2.0 AWD	B 4204 T43	1969	367	Estate	4	6/15 - /
V60 T4	B 4164 T	1596	180	Estate	4	9/10 - /
V60 T5	B 4204 T7	1999	241	Estate	4	9/10 - /
V60 T6 AWD	B 6304 T4	2953	305	Estate	6	9/10 - /
V60 2.0 T	B 4204 T6	1999	203	Estate	4	9/10 - /
V60 D3 / D4	D 5204 T2	1984	163	Estate	5	9/10 - /
V60 D5	D 5244 T10	2400	205	Estate	5	9/10 - /
V60 D5 AWD	D 5244 T10	2400	205	Estate	5	9/10 - /
V60 T3	B 4164 T3	1596	150	Estate	4	9/10 - /
V60 1.6 DRIVe	D 4162 T	1560	114	Estate	4	6/11 - /
V60 2.4 D5	D 5244 T11	2400	215	Estate	5	6/11 - /
V60 2.4 D5 AWD	D 5244 T11	2400	215	Estate	5	6/11 - /
V60 T4F	B 4164 T2	1596	180	Estate	4	4/11 - /
V60 2.4 Hybrid D6 AWD	D 5244 T15	2400	215	Estate	5	6/12 - /
V60 D3	D 5204 T7	1984	136	Estate	5	2/12 - /
V60 D4 AWD	D 5244 T17	2400	163	Estate	5	2/12 - /
VOLVO V70 III (BW)					5/11 - /
V70 III (BW) 3.2 AWD	B 6324 S	3192	238	Estate	6	8/07 - /
V70 III (BW) D3	D 5204 T7	1984	136	Estate	5	3/10 - /
V70 III (BW) D4	D 4204 T5	1969	181	Estate	4	0/13 - /
V70 III (BW) D4 AWD	D 5244 T17	2400	163	Estate	5	1/13 - /
V70 III (BW) D4 AWD	D 5244 T12	2400	181	Estate	5	0/13 - /
V70 III (BW) T5	B 4204 T11	1969	245	Estate	4	0/13 - /
V70 III (BW) 2.4 D	D 5244 T5	2400	163	Estate	5	8/07 - /
V70 III (BW) 2.0 D	D 4204 T	1997	136	Estate	4	0/07 - /
V70 III (BW) D5 AWD	D 5244 T4	2400	185	Estate	5	0/07 - /
V70 III (BW) D5	D 5244 T4	2400	185	Estate	5	8/07 - /
V70 III (BW) D2	D 4204 T20	1969	120	Estate	4	3/15 - /
V70 III (BW) D3	D 4204 T9	1969	150	Estate	4	3/15 - /
V70 III (135) T4	B 4204 T19	1969	190	Estate	4	3/15 - /
V70 III (BW) 2.5 T FlexiFuel	B 5254 T8	2521	200	Estate	5	5/08 - /
V70 III (BW) 2.0 FlexiFuel	B 4204 S4	1999	146	Estate	4	1/08 - /
V70 III (BW) T6 AWD	B 6304 T2	2953	286	Estate	6	8/07 - /
V70 III (BW) 2.0	B 4204 S3	1999	145	Estate	4	0/07 - /
V70 III (BW) 2.5 T	B 5254 T6	2521	200	Estate	5	8/07 - /
V70 III (BW) 3.2	B 6324 S	3192	238	Estate	6	8/07 - /
V70 III (BW) T4	B 4164 T	1596	180	Estate	4	0/10 - /
V70 III (BW) 1.6 DRIVe / D2	D 4162 T	1560	114	Estate	4	6/11 - /
V70 III (BW) D5	D 5244 T11	2400	215	Estate	5	6/11 - /
V70 III (BW) D5 AWD	D 5244 T11	2400	215	Estate	5	6/11 - /
V70 III (BW) T5	B 4204 T7	1999	241	Estate	4	1/10 - /
V70 III (BW) 2.4 D	D 5244 T14	2400	175	Estate	5	0/09 - /
V70 III (BW) 2.5 T FlexiFuel	B 5254 T11	2521	231	Estate	5	0/09 - /
V70 III (BW) D5	D 5244 T10	2400	205	Estate	5	2/09 - /
V70 III (BW) D5 AWD	D 5244 T10	2400	205	Estate	5	2/09 - /
V70 III (BW) 2.5 T	B 5254 T10	2521	231	Estate	5	1/10 - /
V70 III (BW) 2.0 T	B 4204 T6	1999	203	Estate	4	1/10 - /
V70 III (BW) 1.6 D	D 4164 T	1560	109	Estate	4	1/10 - /
V70 III (BW) 3.2	B 6324 S5	3192	243	Estate	6	5/11 - /
V70 III (BW) D3 / D4	D 5204 T2	1984	163	Estate	5	3/10 - /
V70 III (BW) T6 AWD	B 6304 T4	2953	305	Estate	6	4/11 - /
V70 III (BW) 1.6 T4F	B 4164 T2	1596	180	Estate	4	1/11 - /
V70 III (BW) 3.2 AWD	B 6324 S5	3192	243	Estate	6	5/11 - /
VOLVO XC70 II Estate					8/11 - /
XC70 II Estate D4	D 4204 T5	1969	181	Estate	4	0/13 - /
XC70 II Estate D4 AWD	D 5244 T12	2400	181	Estate	5	0/13 - /
XC70 II Estate T5	B 4204 T11	1969	245	Estate	4	0/13 - /
XC70 II Estate D5 AWD	D 5244 T20	2400	220	Estate	5	3/15 - /
XC70 II Estate 3.2 AWD	B 6324 S	3192	238	Estate	6	8/07 - /
XC70 II Estate D5 AWD	D 5244 T4	2400	185	Estate	5	8/07 - /
XC70 II Estate 2.4 D / D4 AWD	D 5244 T5	2400	163	Estate	5	8/07 - /
XC70 II Estate D5 AWD	D 5244 T11	2400	215	Estate	5	6/11 - /
XC70 II Estate 3.2 AWD	B 6324 S5	3192	243	Estate	6	8/07 - /
XC70 II Estate T6 AWD	B 6304 T4	2953	304	Estate	6	1/10 - /
XC70 II Estate T6 AWD	B 6304 T2	2953	286	Estate	6	1/08 - /
XC70 II Estate D5 AWD	D 5244 T10	2400	205	Estate	5	2/09 - /
XC70 II Estate 2.4 D	D 5244 T14	2400	175	Estate	5	1/10 - /
XC70 II Estate D3	D 5204 T2	1984	163	Estate	5	8/11 - /

Application

VOLVO S80 2007-2010
VOLVO V702008-2010
VOLVO XC702009-2010
