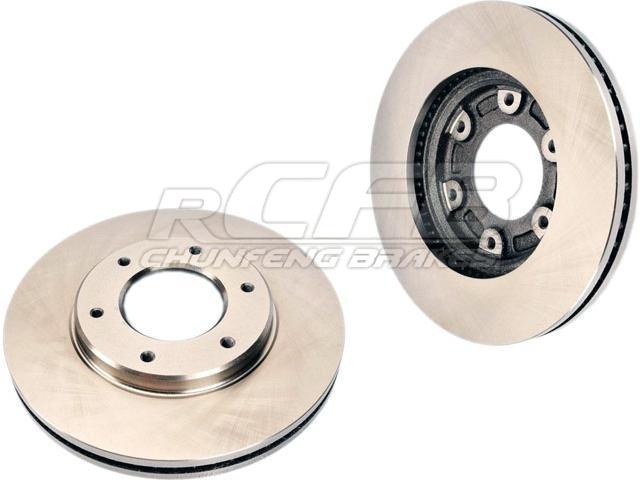

Brake Disc:43512-26160--TAIZHOU CHUNFENG AUTO PARTS CO.,LTD

Description
Ref.:	43512-26160
CF NO.:	CFD-0868
Name:	Brake Disc
Unit:	PCS
Price:
Front Axle Height : 45.5 mm Diameter : 285 mm Centering Diameter : 84 mm Pitch Circle Diameter : 127 mm Brake Disc Thickness : 28.0 mm Minimum Thickness : 26 mm Num. of holes : 6 Solid or Vented : V Weight : 7.5 kg

Model	Engine			Type	CYL	year
JINBEI (BRILLIANCE) GRANSE MPV					2/04 - /
GRANSE MPV 2.0	4G20D4L	1977	125	MPV	4	1/07 - /
GRANSE MPV 2.4	4RB2	2438	139	MPV	4	2/04 - /
TOYOTA HIACE III Wagon (LH1_, RZH1_)					8/89 - 4/98
HIACE III Wagon (LH1_, RZH1_) 2.0 (RZH102)	1RZ	1998	101	Bus	4	8/89 - 4/98
TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_)					8/95 - 2/05
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Box	4	4/98 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_)	2L	2446	79	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Box	4	8/95 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	88	Box	4	1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	102	Box	4	1/01 - 8/06
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.4 (RCH12_, RCH22_)	2RZ-E	2438	116	Box	4	8/95 - 2/05
TOYOTA HIACE IV Bus (LH1_)					1/01 - 8/06
HIACE IV Bus (LH1_) 2.4 (RCH12_, RCH22_)	2RZ-E	2438	115	Bus	4	8/95 - 4/98
HIACE IV Bus (LH1_) 2.7 (RCH13_, RCH23_)	3RZ-FE	2694	143	Bus	4	4/98 - 1/01
HIACE IV Bus (LH1_) 2.7	3RZ-FE	2694	144	Bus	4	1/01 - 8/06
HIACE IV Bus (LH1_) 2.4 D	2L-T	2446	75	Bus	4	7/99 - 8/06
HIACE IV Bus (LH1_) 2.4 D	2L	2446	79	Bus	4	8/95 - 8/06
HIACE IV Bus (LH1_) 2.4 TD (LXH12_, LXH22_)	2L-T	2446	90	Bus	4	8/95 - 8/06
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	88	Bus	4	1/01 - 8/06
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	102	Bus	4	1/01 - 8/06
TOYOTA HIACE IV Wagon (H100)					8/95 - 4/98
HIACE IV Wagon (H100) 2.0	1RZ	1998	101	Bus	4	8/95 - 4/98
