Description
Ref.:	43512-26090
CF NO.:	CFD-1073

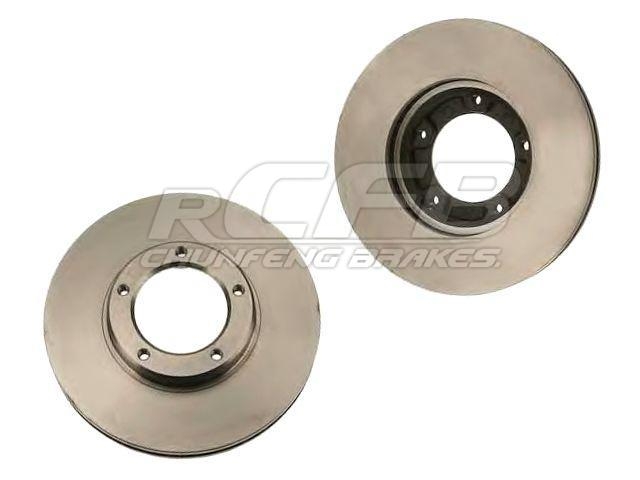

Name:	Brake Disc
Unit:	PCS
Price:
Front Axle Height : 47 mm Diameter : 255 mm Centering Diameter : 84 mm Pitch Circle Diameter : 110 mm Brake Disc Thickness : 25 mm Minimum Thickness : 23 mm Num. of holes : 5 Solid or Vented : V Weight : 5.7 kg

Model	Engine			Type	CYL	year
TOYOTA HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_)					2/90 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.0	1RZ	1998	101	Box	4	2/90 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4	2RZ-E	2438	120	Box	4	8/89 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 D	2L	2446	75	Box	4	2/90 - 8/95
TOYOTA HIACE III Wagon (LH1_, RZH1_)					8/89 - 8/95
HIACE III Wagon (LH1_, RZH1_) 2.0 (RZH102)	1RZ	1998	101	Bus	4	8/89 - 4/98
HIACE III Wagon (LH1_, RZH1_) 2.4 (RZH103)	2L	2438	120	Bus	4	8/89 - 8/95
HIACE III Wagon (LH1_, RZH1_) 2.4 D (LH102)	2L	2446	75	Bus	4	8/89 - 8/95
